OI-6940 Notis Quad

OI-6940 Sensor Assembly Notis Quad - Otis Instruments

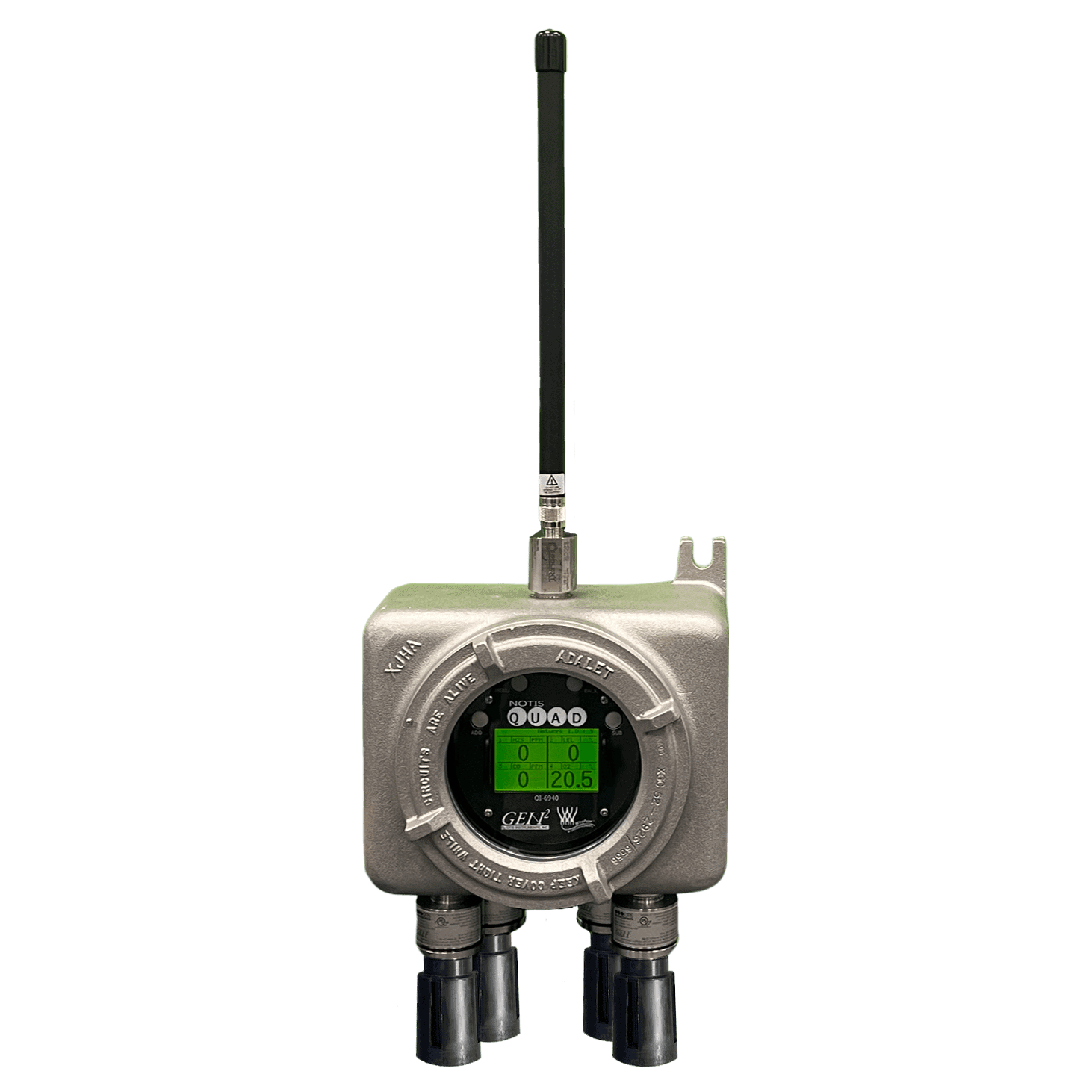

The OI-6940 Notis Quad is a battery-powered explosion proof 4-gas sensor assembly that simultaneously uses up to four sensors—Electrochemical and/or Low-Power Infrared—for sensing an array of toxic gases in ambient air. The Notis Quad comes standard with a 160×104 graphical LCD screen, four-button interface, non-intrusive switches, and one radio (900 MHz or 2.4 GHz). The Notis Quad is field-adjustable for background gas, and addressable to eliminate interference with other systems. The Notis Quad is designed to be self-contained, to last for up to 6 months using a 3.6V 76 Amp Hour battery-pack, and to reject EMI and other forms of interference in order to avoid false gas readings.

WireFree Explosion-Proof Battery-Powered Ambient Air Multi-Gas Detector (CO, H2S, HCN, O2, SO2, and LEL)

Part Number Formula: OI-6940-[# of Sensors]-[Radio Frequency]-XP

[# of Sensors] = OI 2700-[Gas Type]

Battery Type: 3.6V 76 Amp Hour battery-pack

Battery Life: Up to 6 months (normal operation with standard sensors)

Standard Sensors: H2S, CO, O2, and LEL

Sensor Ranges: H2S = 0-100 PPM, CO = 0-1,000 PPM, O2 = 0-25 %, LEL = 0-100 %

Display: Graphical LCD, sunlight readable (transflective), LED back-light, 160×104 resolution

Interface: Four push buttons (MENU, BACK, ADD, SUB); four corresponding magnetic, non-intrusive switches; non-intrusive calibration

Operating Temperature: -40° F to 129° F; -40° C to 54° C

Enclosure: 10x9x6 Explosion-proof

Certification: Class I, Division 1, Groups C & D


• Hardware: One year (limited)

• Sensor: One year (varies with sensor type)

• Battery: 90 days (from ship date)

Number of Sensors: Up to four

Sensor Type Options: Electrochemical or Low-Power Infrared

Gases: H2S, O2, SO2, CL2, H2, NH3, CO, LEL (hydrocarbons), and more

Remote Sensors: Kit to remote-mount the sensors 10, 25, 50, 75, or 100 feet from the enclosure

Radio Type: 2.4 GHz ISM, 100 mW OR 900 MHz, 200mW
