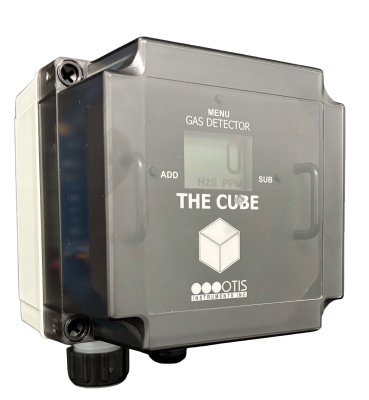

OI-6000 Cube Non-XP Wired Detector with Relays
The Otis Instruments OI-6000 Cube Series Ambient Air Toxic Gas Detector is a versatile assembly that uses an electrochemical, infrared or PID sensor element to detect a variety of gases. Wired power (12 to 35 VDC or 120 VAC) with 4-20 mA analog, RS-485 Modbus and WireFree output options. The OI-6000 Cube with relays allows for the ability to tie in lights, sirens, fans, etc. to the unit and be activated when the reading reaches a determined value.
Part Number Formula: OI-6000-[Sensor Type]-[Gas]-[Radio Option]-R-[Power Option]-C
Product Specifications
Sensor Type: Electrochemical, Infrared, Photo Ionization Detector
Power Voltage: Wired Power (3-Wire) 12 to 35 VDC or 120V AC
Power Draw: 2 Watts Maximum
2 Dry-Contact Relays with Replaceable 4 Amp Fuses
Operating Temperature Range: -40°C to +70°C
Analog Wired Output: 4-20 mA (3-Wire)
Wet Contact Fault Terminal
Digital RS-485 Modbus Output:
Optional WireFree Radio Output GEN II 900 MHz or GEN II 2.4 GHz
Product Dimensions: 7.6″ L x 5.1″ W x 5.4″ H
Total Weight 4 lbs.
Warranty:
Hardware: One Year (Limited)
Sensor Element: Varies with Sensor/Gas Type
