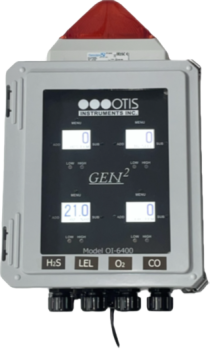

OI-6400 Wired Quad Detector with Light & Siren
The OI-6400 Quad is a wire-powered, non-explosion proof 4-gas sensor assembly that simultaneously uses up to four sensors—Electrochemical, Infrared, or Photo Ionization detector—for sensing an array of toxic gases in ambient air. This unit allows for the ability to detect multiple types of gases at once and have built in alarms on the unit making this a multi gas stand alone device.
Part Number Formula: OI-6400-[Strobe Color Option]
Product Specifications
Sensor Types: Electrochemical, Infrared, Photo Ionization Detector
Power Voltage: Wire Powered: 12 to 35 VDC or 120/240 VAC
2 Individually-Configurable Alarm Set-Points with Built-In Strobe Light and Piezo Alarm Buzzer
Operating Temperature: -40°C to 70°C
Four Analog Wired Outputs 4-20mA (3-Wire)
Four Wet Contact Fault Terminals
Digital RS-485 Modbus Output
Enclosure: NEMA Class 1, 4, 4X, and 6, Fiberglass Enclosure with Clear Lid, IP 66/67, UL 508, and UL 746C 5″ Certified
Warranty:
• Hardware: One Year (Limited)
• Sensor: Varies with Sensor/Gas Type
