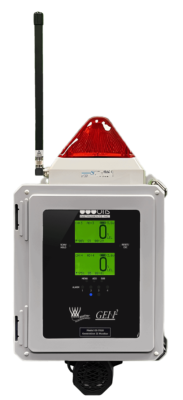

OI-7010 Hybrid Monitor



The OI-7010 is a sophisticated 32-channel Hybrid Monitor designed to elevate your gas detection and monitoring systems. Supporting up to 32 WireFree sensor assemblies alongside four 4-20mA input sensor assemblies, the OI-7010 offers unparalleled flexibility for both wireless and wired configurations.

Seamlessly integrate with your existing systems using Modbus RS-485 connectivity and leverage the four dry contact relays for efficient and reliable communication with external devices. The OI-7010 is engineered to provide robust performance and adaptability, making it an ideal choice for complex safety and monitoring applications.

Part Number Formula: OI-7010-[Power Supply]-[Radio Frequency]-A4-32

Product Specifications

Operating Voltage: 12V to 35V DC or 120V/240V AC

Current Draw: 275 mA at 24 VDC (Monitor only with no additional items); 6.6 Watts Max

Compatibility: Otis WireFree Sensors and any 4-20 mA Output Wired Device

Channels: 32 (WireFree Sensor Assemblies)

Relays: 4 Dry-Contact with 4 Amp Fuses

Wired Output: RS-485 Modbus

Operating Temperature: -30°C to +70C

Warranty:

Hardware: One Year (Limited)

Dimensions:

10″L x 8″W x 6″H

25.4 cm x 20.32cm x 15.24 cm

Weight: 10.0 lbs (4.54 kg)

Enclosure Rating: NEMA 4

Power: AC or DC

Radio Configuration: Gen II 900 MHz Radio, Gen II 2.4 GHz Radio

Enclosure: Standard Fiberglass
