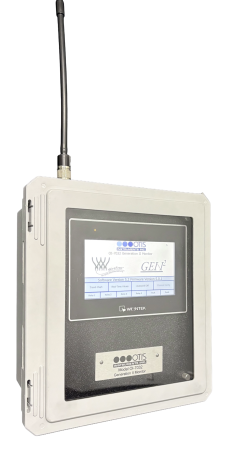

OI-7032 Hybrid Data-Logging Monitor
The Otis Instruments, Inc. Gen II OI-7032 (32-Channel) is a hybrid monitor and data logger that supports up to 32 WireFree sensor units, and up to four 4-20mA input sensors (when only 28 channels are setup as WireFree). The OI-7032 is backward compatible with Gen I WireFree sensor units, and also supports Gen II Wirefree sensor units (configurable).
Part Number Formula: OI-7032-[Power Supply]-[Radio Frequency]-A4
Operating Voltage: 12V to 35V DC or 120V AC
Protection: Power EMI filter, surge suppression, 4-20mA and RS-485 surge suppression
Compatibility: Otis WireFree and wired (4-20mA input) sensor assemblies
Radio Options: One Legacy radio: 900 MHz, 100mW and/or one Gen II radio: 2.4 GHz ISM, 100mW; 900 MHz, 200mW
Operating Temp. Range: -20 to 122 degrees F
Current Draw: 400mA at 24 Volts DC
Certifications: NEMA 4 (enclosure only)
Memory: 2 GB USB
Channels: 32
Wired Out: RS-485 Modbus
Relays: Four Dry-Contact with 4 Amp Fuses
Gases: All that are supported by Otis sensor assemblies
Enclosure: Stahlin 12x10x6 fiberglass with clear window
Display: 7.0 Inch 800×480 pixels resistive touchscreen
Warranty: Hardware: 1 year (limited)
Power: AC, DC
Radio Configuration: Gen II 900 MHz Radio, Gen II 2.4 GHz Radio
| OI-452 | 12x10x6 Fiberglass Enclosure with Clear Window Lid |
| OI-7032-SCREEN | OI-7032 Touchscreen Datalogger, includes Mounting Hardware |
| OI-7032-USB | USB Flash Drive for OI-7032, 2GB |
| OI-7032-FP-KIT | OI-7032 Faceplate Kit with Faceplate, Label, (2) Thumbscrews, Handle, (2) Hinges |
| OI-7032-PCA | OI-7032 Control Board, does not include Radio Module |
| OI-432-16-NMF | N-Female Bulkhead to RPSMA Male Cable Assembly, 16 inches |
| OI-RADIO-900-4R-KIT | GEN II 900 MHz Radio Module with 4 Inch uFL Cable |
| OI-AN-900-FLEX-S | 900 MHz Antenna, Flexible, Straight |
| OI-7032-BP | Backplane for 12x10x6 Fiberglass Enclosure |
