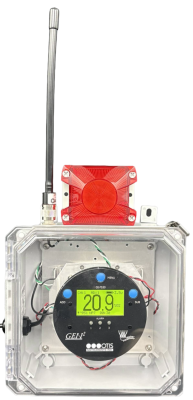

OI-7530 Non-XP Relayer

The Gen II WireFree Relayer OI-7530 is a powerful wireless secondary relay and alarm system designed to seamlessly integrate with the Otis Instruments Gen II WireFree Product Line. Capable of monitoring up to 32 sensor assemblies, the OI-7530 utilizes advanced 900MHz or 2.4GHz radio transmissions for robust and reliable communication.
With versatile Modbus RS-485 connectivity and three dry-contact relays, the OI-7530 offers flexible integration options and enhances your safety system’s responsiveness. Whether for industrial safety, environmental monitoring, or critical infrastructure protection, this relayer provides the confidence and control you need in demanding environments.
Part Number Formula: OI-7530-[Radio Frequency]-[Power Supply]-I
Product Specifications
Operating Voltage: 12V to 35V DC or 120V/240V AC
Current Draw: 275 mA at 24 VDC (Monitor only with no additional items); 6.6 Watts Max
Compatibility: Otis WireFree Sensors
Channels: 32 (WireFree Sensor Assemblies)
Relays: 3 Dry-Contact with 4 Amp Fuses
Wired Output: RS-485 Modbus
Operating Temperature: -30°C to +70C
Warranty:
Hardware: One Year (Limited)
Dimensions:
8″L x 8″W x 4″H
20.32 cm x 20.32 cm x 10.16 cm
Weight: 8.0 lbs (3.62 kg)
Enclosure Rating: NEMA 4
Power: AC or DC
Radio Configuration: Gen II 900 MHz Radio, Gen II 2.4 GHz Radio
Enclosure: Standard Fiberglass
